Schimtz Residence

Components being installed for 4Kwp GRID-TIE Solar PV System:

The system is using ACPV MODULES with built-in APS Micro Inverter installed at the back of the Solar Panel.

  • 16 sets of 260 Watts ACPV MODULE with built-in APS Micro-Inverter at the back of Solar Panels (i.e. Latest Technology PV System)

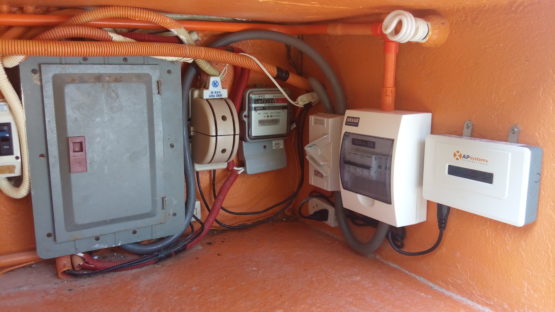

  • 2 Units of 20A Miniature Circuit Breaker
  • 1 Unit of 20KA~40KA / 385V AC Surge Protector Device
  • 1 piece ECU WI-FI Unit for Real Time Online Monitoring via WEB
  • 1 piece 63A/2P/230V AC Disconnect Switch
  • 1 set of Wall Mounted 4 holes Enclosure box
  • 150meters of #12 THHN AWG Cable as a home run cable for grid connection.
  • Complete set of installation materials such as Solar Panel Mounting

Aluminum Rails, Mid Clamps, End Clamps, L-Foot, MC4 connectors and other Micro Inverter cable accessories, screws, etc.

  • Complete installation and commissioning.

The system is GRID-TIE. Its is designed to generate an estimated electrical output of approximately between 600Kwhr ~ 660Kwhr per month based on the Equivalent Sun Hours (ESH) of 5.0 ~5.5 hrs per day.

 ACPV MODULES is one of the latest technology available in the market today and comes with a 25 full years warranty for both Solar Panels and Micro Inverters.
